DX56P Zoom Digital Boom Microscope 15x - 154x

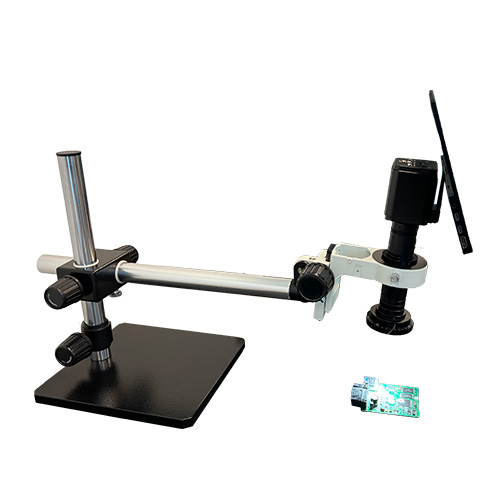

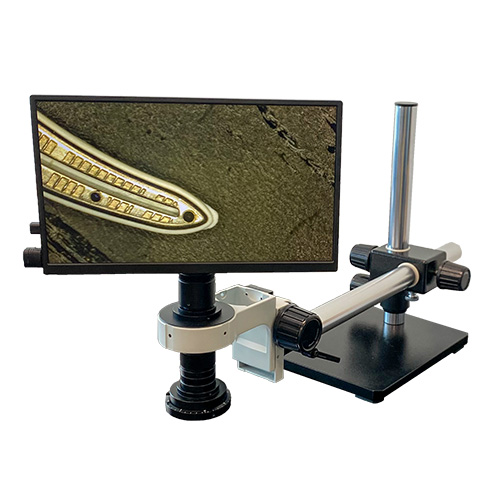

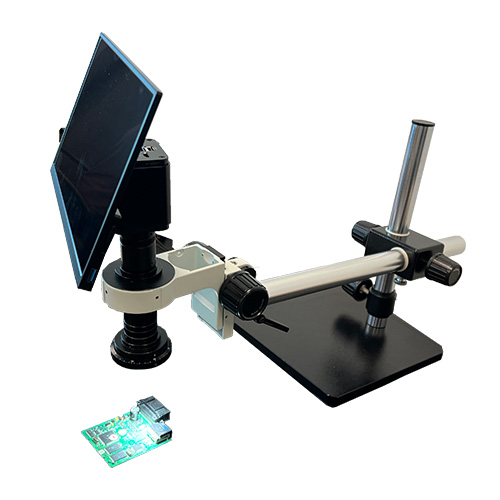

The Fein Optic DX56P zoom digital boom microscope is a zoom lens system with 0.7x – 5.6x magnification. The on-screen magnification range of 15x- 154x is achieved when pairing the 1x or 0.75x auxiliary lens with the included 13″ LCD HDMI monitor. Choose from a 2mp HD camera or 8mp UHD 4K camera with software. The system includes a boom stand with tilting pin mount and coarse focusing holder, and polarizing LED ring light.
| Zoom Lens | 0.7x – 5.6x, NA = 0.09, with detents for measurements. |
| Auxiliary Lens | 1x, WD = 80mm |
| 0.75x, WD = 105mm | |
| On Screen Magnification | 1x Auxiliary Lens = 19x – 154x |
| 0.75x Auxiliary Lens = 15x – 116x | |
| Maximum Resolution | 5µm |
| Stand | Boom stand with tilting pin mount for focus holder. Base 259mm W x 290mm D. Maximum distance from the vertical post to the end of the base is 227mm (8.9″). Vertical post is 383mm (15.1″) tall. Horizontal post is 540mm long. |
| Focusing | Coarse focusing holder. |
| Illumination | LED ring light with integrated polarizer and analyzer. |
| Camera | 2mp HD camera 1080p, live resolution 1920 x 1080 pixels. 2mp image capture to USB flash drive. Live image 1080p 60 fps. HDMI connection to monitor. Camera controls: exposure, gain, white balance, color adjustment, sharpness. Mouse included for on-screen controls. On-screen measurement and calibration. |
| 8mp UHD 4K camera 2160p HDMI + USB3 + SD Card / USB Flash Drive. Live image 3840 x 2160 30fps. 8mp image capture to SD card or USB flash drive. HDMI connection to monitor. Camera controls: exposure, gain, white balance, color adjustment, sharpness. Mouse included for on-screen controls. On-screen measurement and calibration. Software included for image capture and measurement on a PC. | |
| Monitor | 13″ HD Monitor |
| 13″ UHD Monitor | |
| Warranty | 2 Years |
| Auxiliary Lens | Working Distance | On Screen Magnification |
| 1x | 80mm | 19x – 154x |
| 0.75x | 105mm | 15x – 116x |
