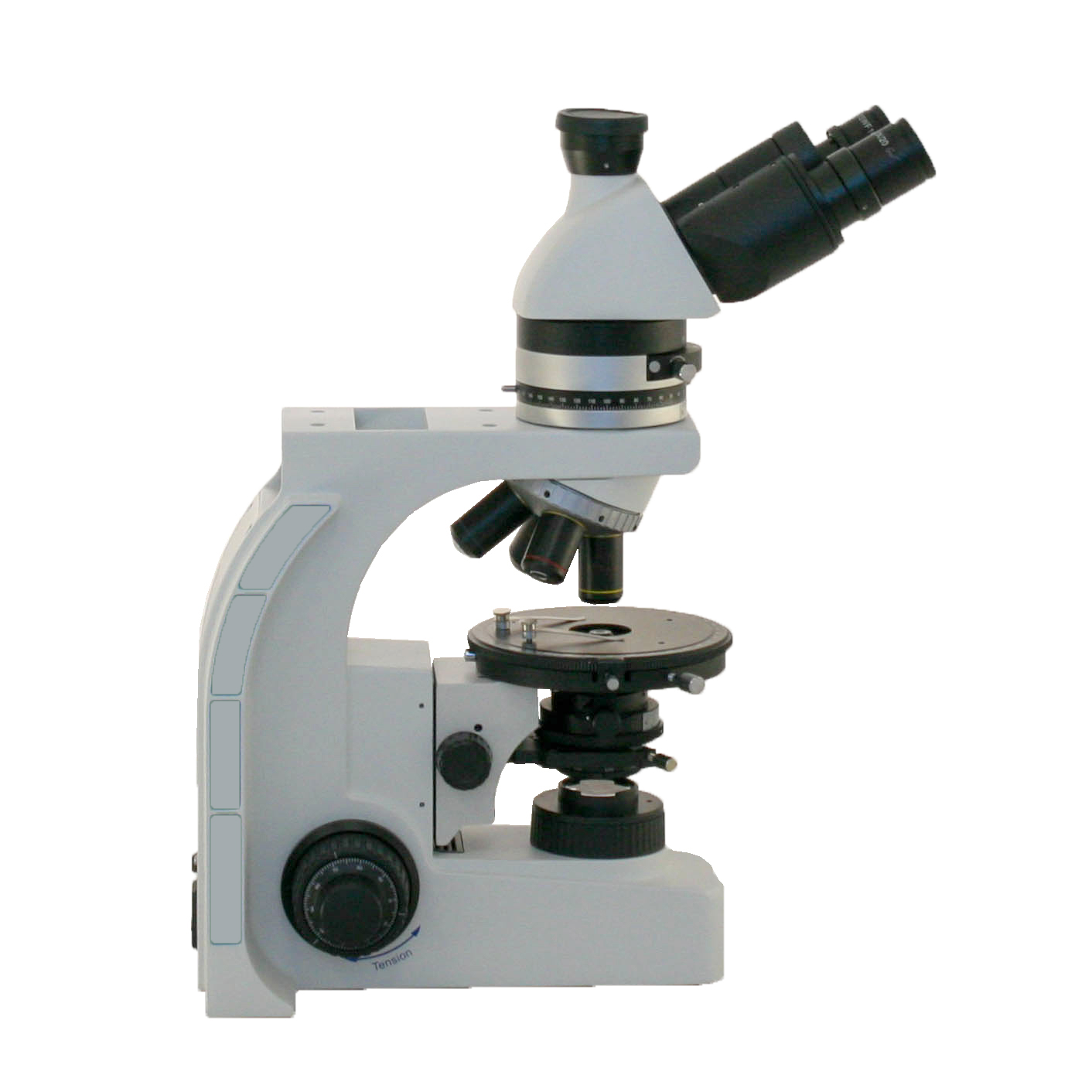

R21POL Polarizing Microscope
The Fein Optic R21POL polarizing microscope is the perfect entry-level polarizing microscope. The petrographic microscope is available with LED transmitted light. An intermediate tube holds the Bertrand lens with rotating switch, pluggable analyzer rotates 180°. Slots for compensators: Gypsum full λ plate, Mica 1/4λ plate and Quartz Wedge. Polarizing microscope stage rotates 360° in 1° increments and can be locked into position. Stage is anti-corrosive, anti-friction and coated in graphite. Stress free Plan Achromat 2x, 4x, 40x, and 60x objectives come standard, along with a 0.5x focusing c-mount.
| Optical System | Infinity Color Corrected Achromatic Optical System |
| Viewing Head | 30° Inclined gemel trinocular head. Interpupillary distance adjustable from 52mm – 75mm. |
| Eyepieces | Pair of WF10x widefield eyepieces, FN20. |
| Single WF10x widefield eyepiece, FN20 with installed crosshair reticle. | |
| Objectives | Stress Free Plan Achromat 2x, NA 0.13. |
| Stress Free Plan Achromat 4x, NA 0.30. | |
| Stress Free Plan Achromat 40x, NA 0.65, spring loaded. | |
| Stress Free Plan Achromat 60x, NA 0.80, spring loaded. | |
| Nosepiece | Revolving quintuple nosepiece. |
| Focus Adjustment | Coaxial coarse and fine focusing adjustment with rack and pinion mechanism. Fine focusing scale 0.002mm. |
| Body | Automatic voltage sensing power supply 110v~240v, removable power cord. |

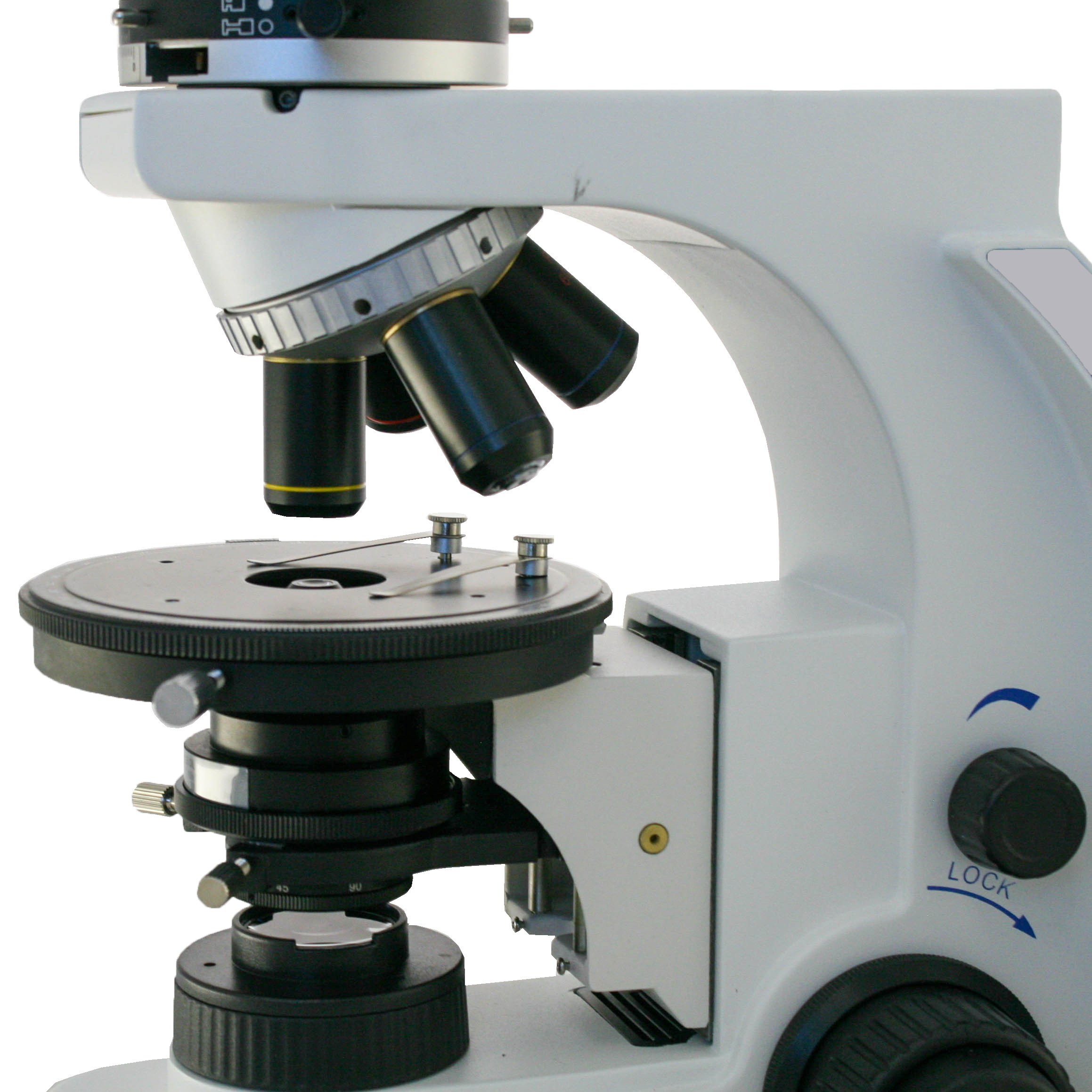

| Stage | 160mm diameter circular metal stage with graphite coating, anti-corrosive and anti-friction, rotates 360°, 1° increments, precision 6′ with locking device. |
| Condenser | N.A. 1.25 Abbe stress-free condenser. |
| Illumination | 3W LED. |
| Polarizer | Rotatable polarizer connects directly onto base of condenser. |

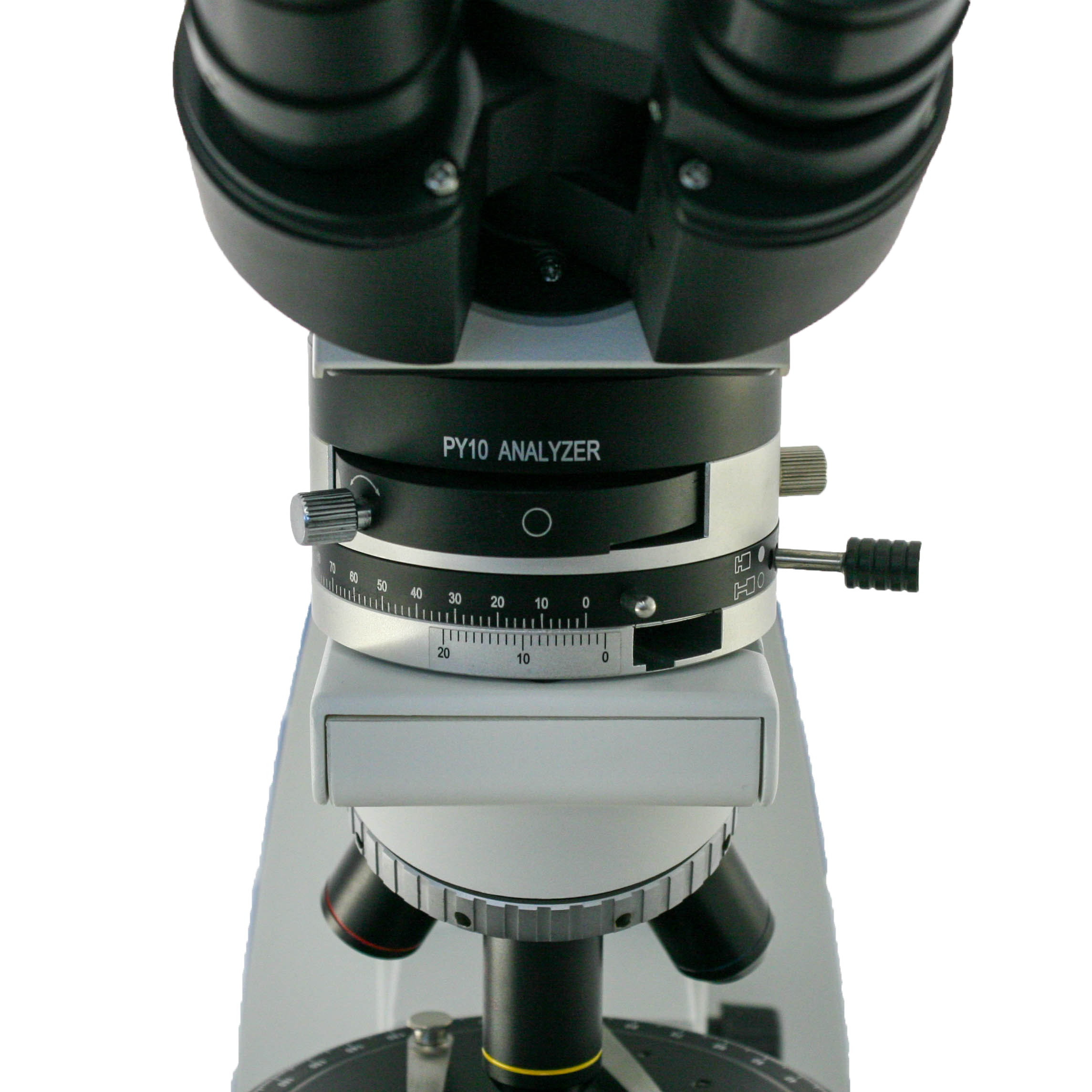

| Analyzer | 180° rotatable analyzer sits in intermediate tube with locking device. |
| Compensators | Gypsum 1 λ plate, Mica 1/4 λ plate, Quartz wedge. |
| C-Mount Adapter | Focusing 0.5x. |
| Filters | Daylight blue and green interference filters, 38mm diameter. |
| Size / Weight | 26 lbs, 18.9″ x 18.9″ x 12.4″ (48cm x 48cm x 31.5cm) |
