FZ8-ILBD Brightfield / Darkfield Stereo Zoom Microscope

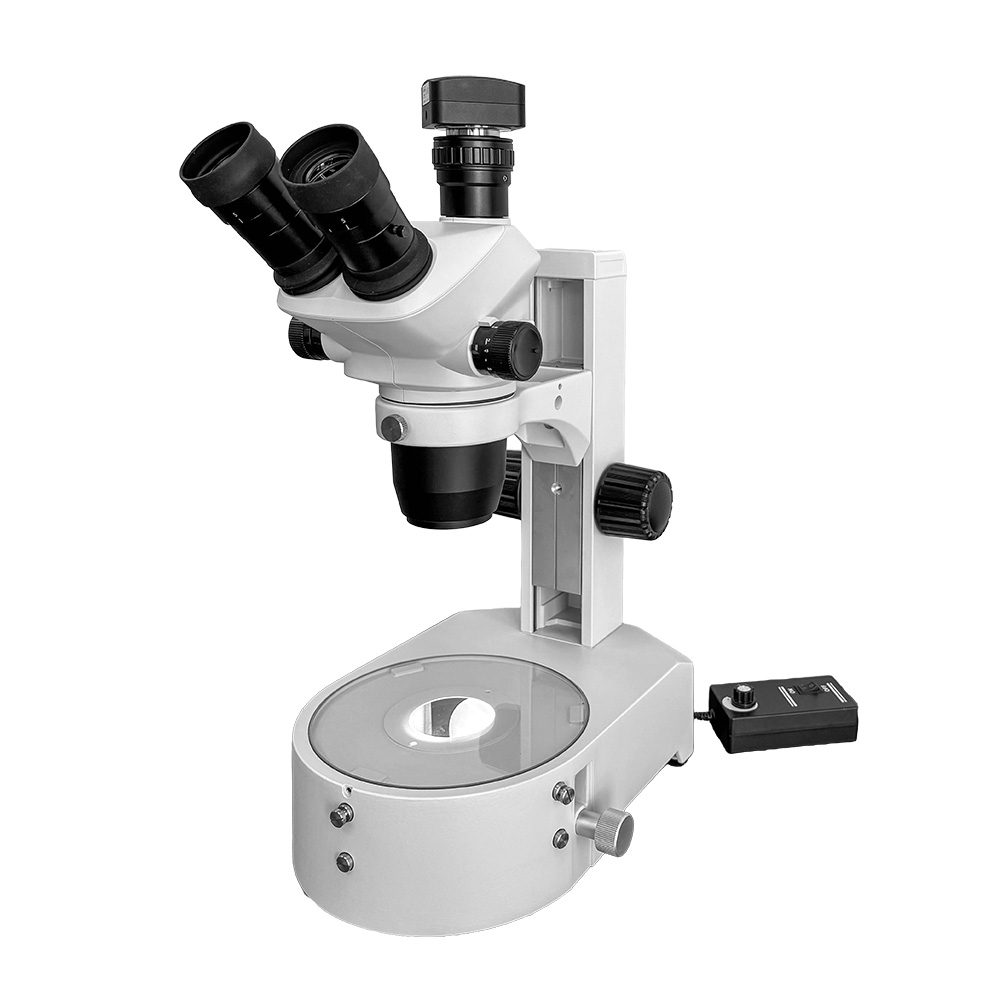

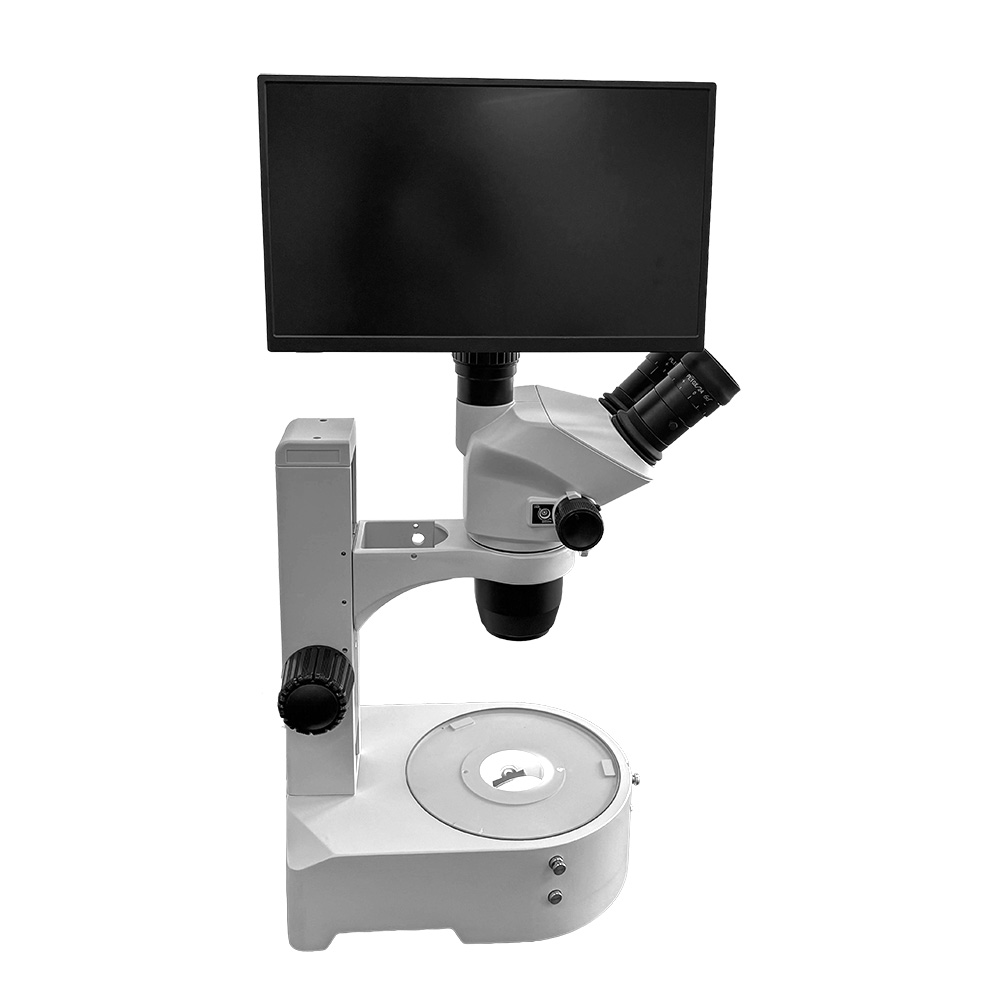

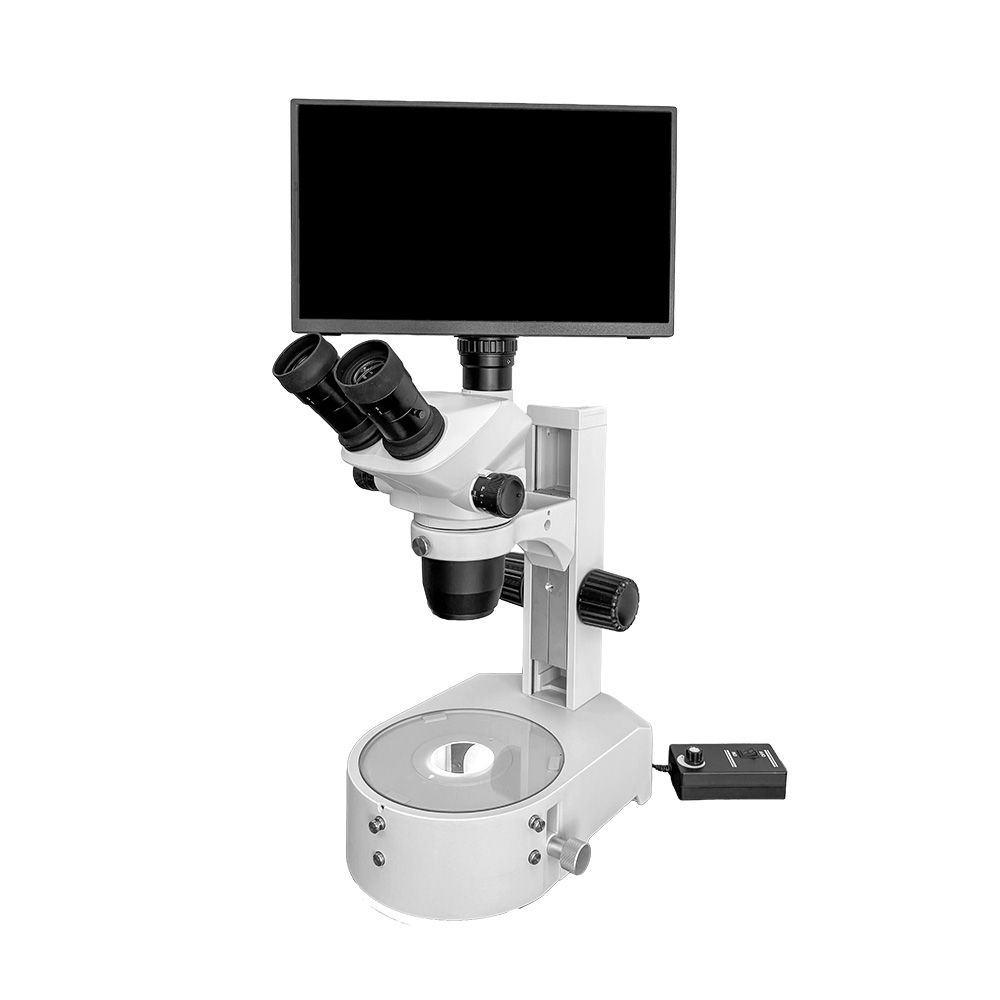

The Fein Optic FZ8 brighfield / darkfield stereo zoom microscope has a built-in objective zoom range of 0.65x – 5.2x. A variety of eyepieces and auxiliary lenses are available to take magnification as low as 3.2x and as high as 208x. The FZ6-ILBD brightfield / darkfield stand has an adjustable mirror base with LED illumination. The hand rest can be added or removed for comfort. Digital cameras can be added to the trinocular port for documentation purposes or a high definition tablet can be added to view images in real time directly on the microscope.
| Optical System | Greenough Optical System |

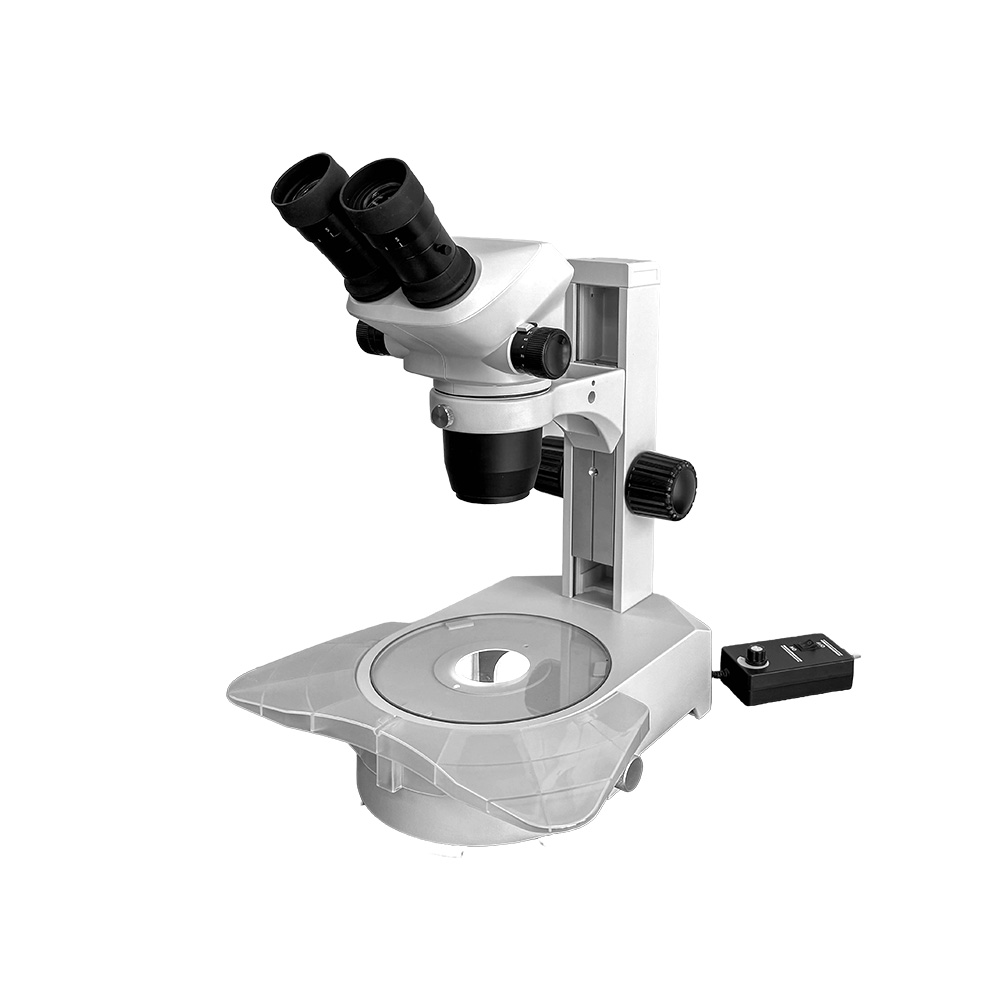

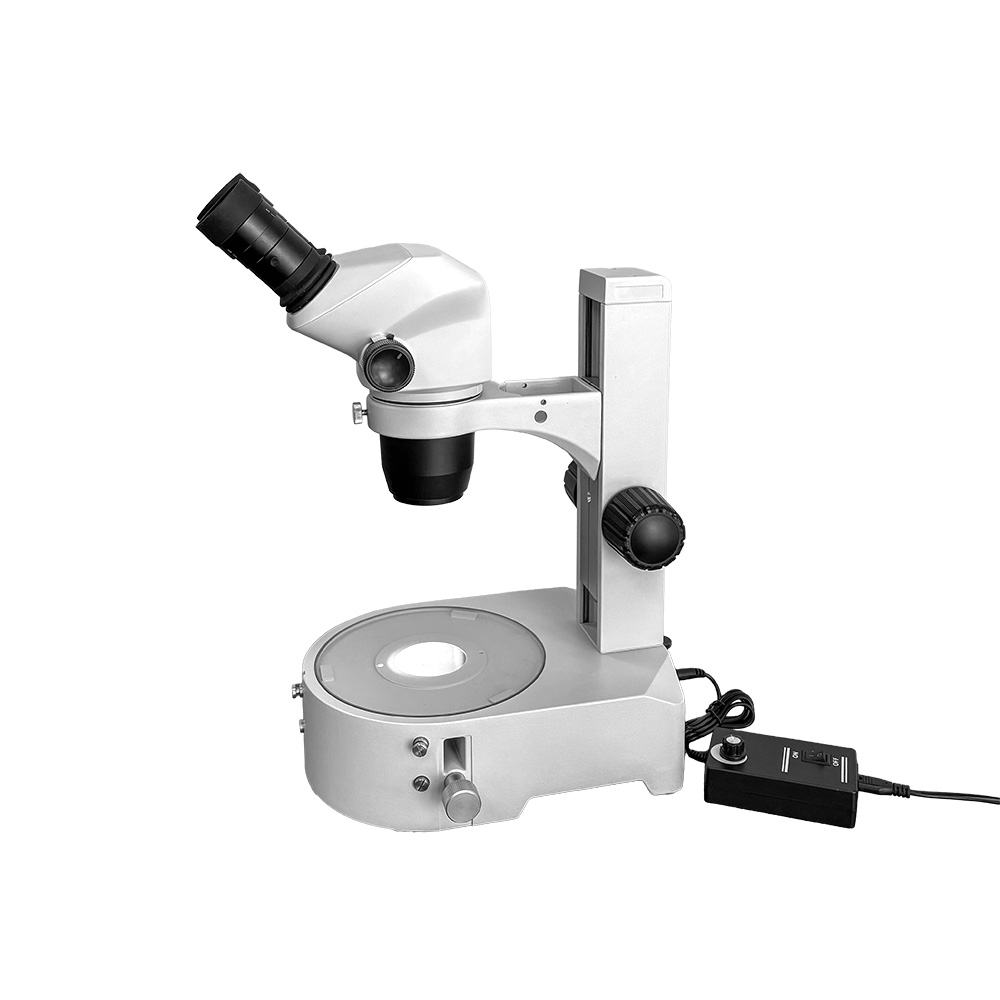

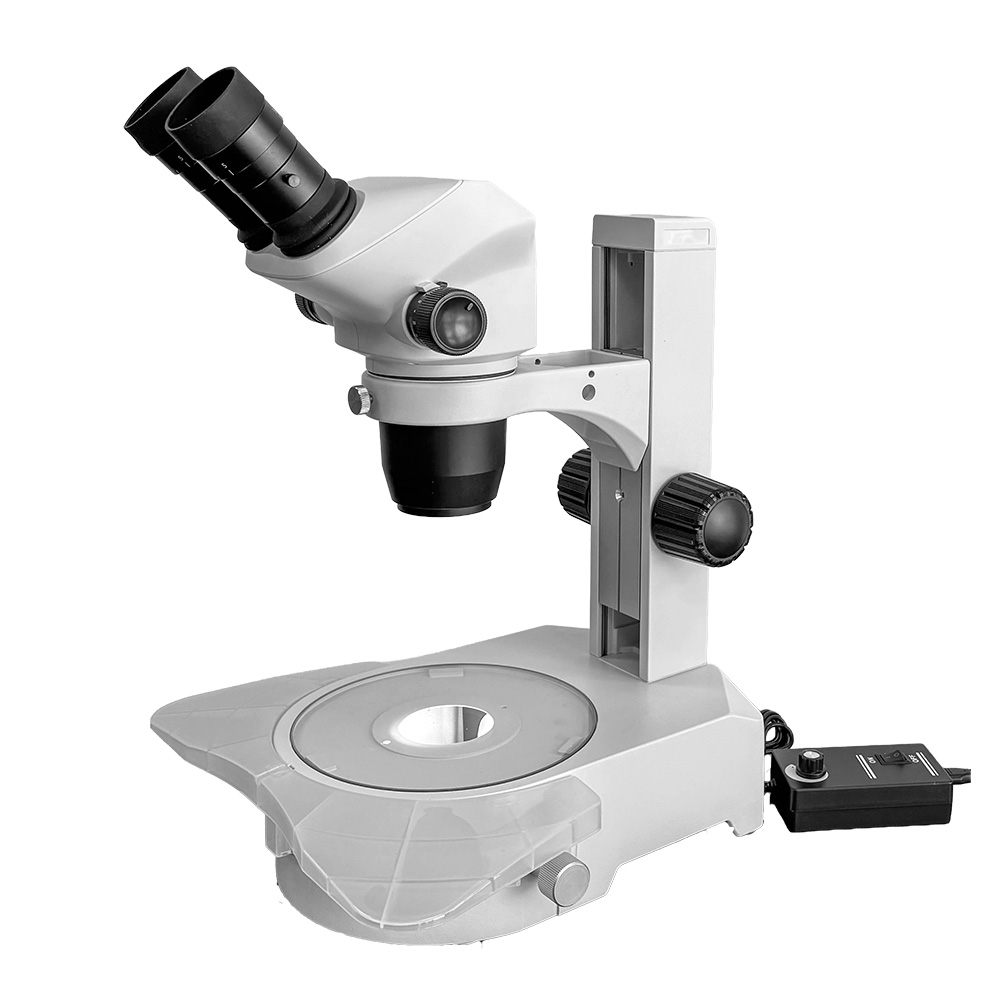

| Viewing Head | 45° Inclined binocular viewing head rotates 360°. Interpupillary distance adjustment from 54mm – 76mm. Detent click stops can be enabled or disabled for continuous zoom. If enabled, click stops are at 1x, 2x, 3x, 4x, and 5x. |

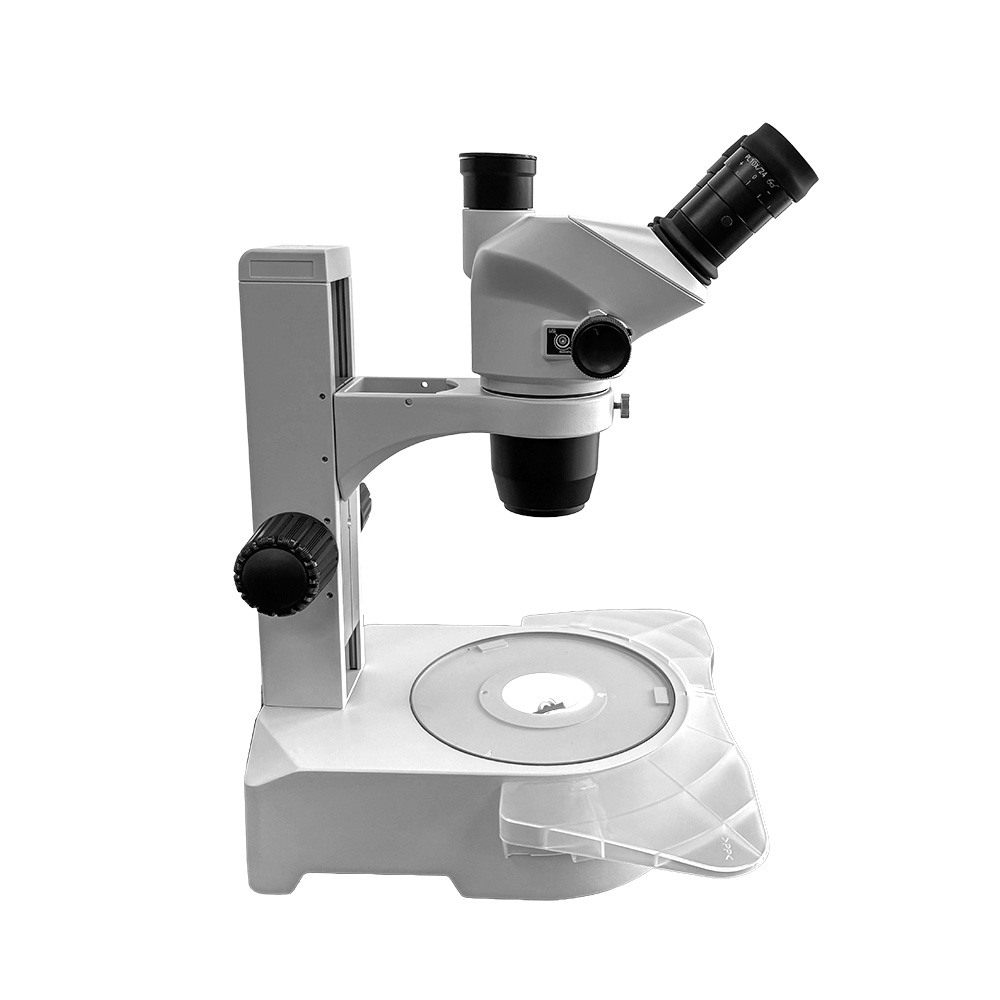

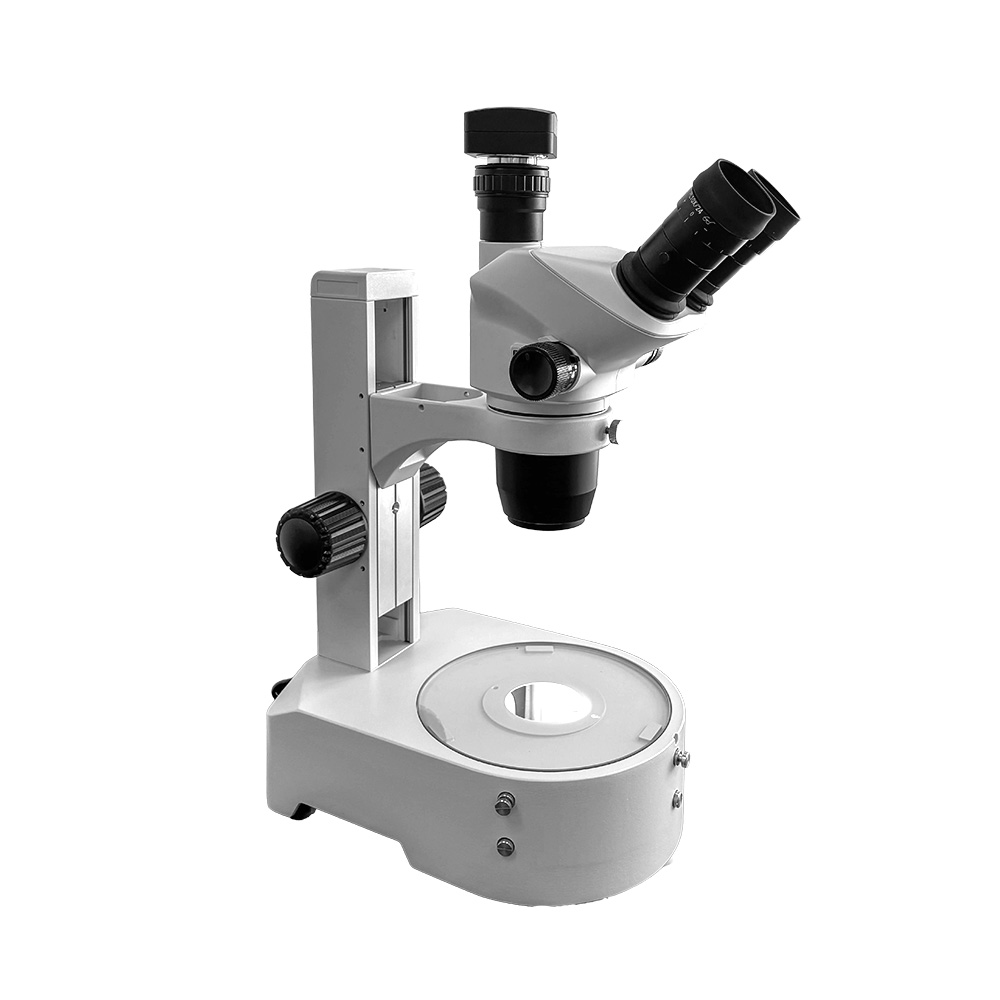

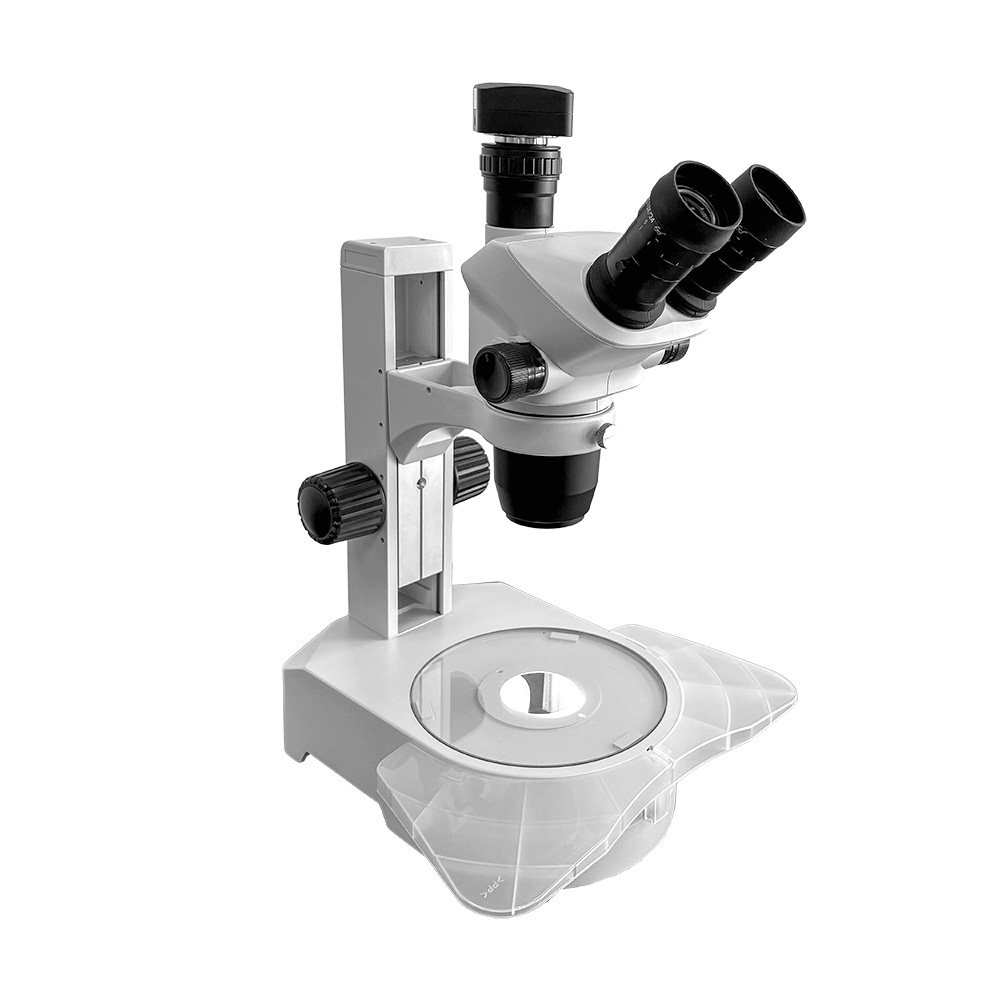

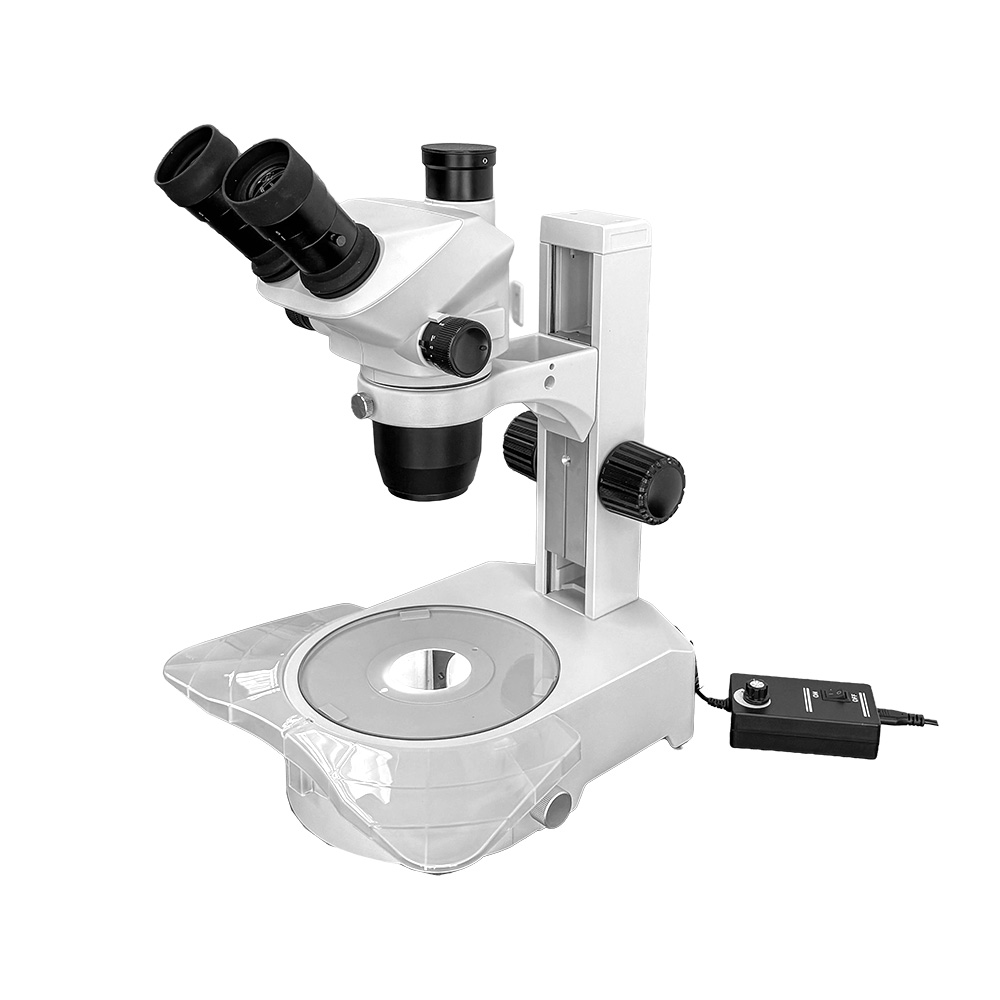

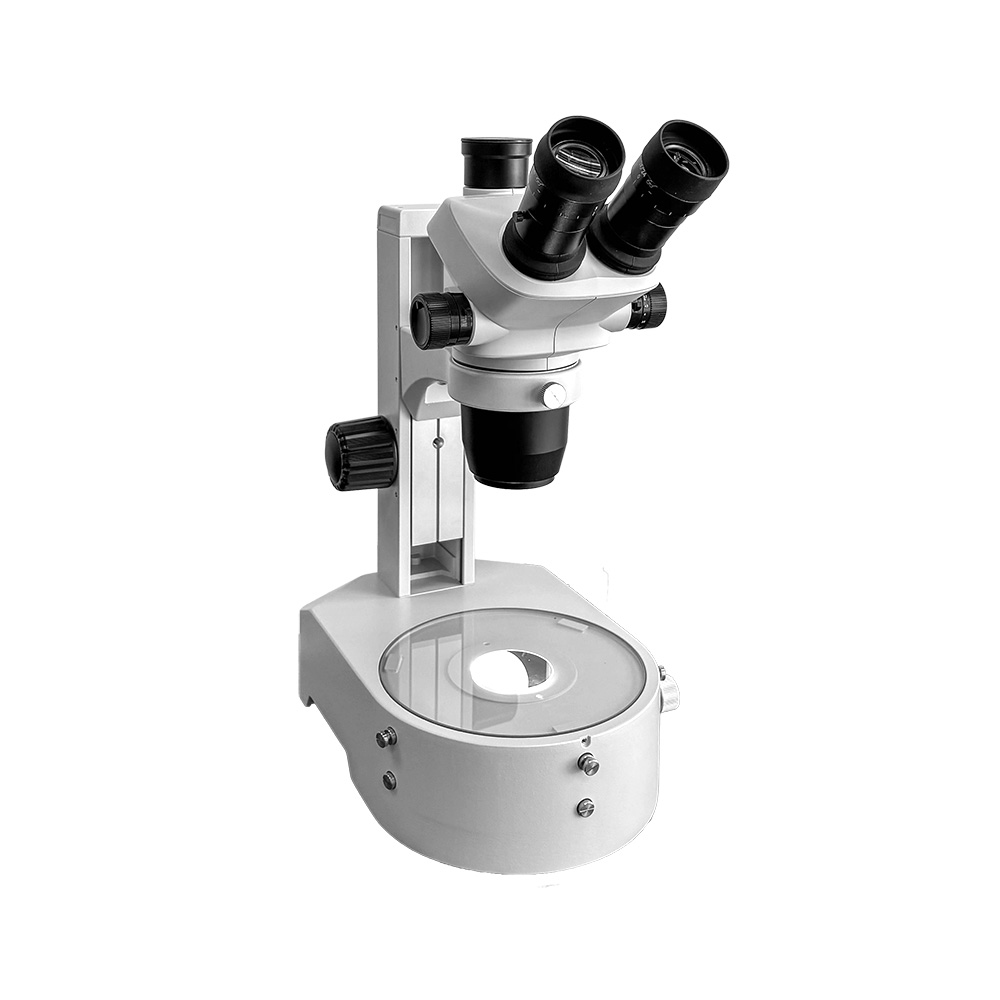

| 45° Inclined trinocular viewing head rotates 360°. Interpupillary distance adjustment from 54mm – 76mm. Beam splitter splits light 50:50 between eyepieces and camera port. Detent click stops can be enabled or disabled for continuous zoom. If enabled, click stops are at 1x, 2x, 3x, 4x, and 5x. | |
| Eyepieces | WF10x-F widefield, high eyepoint, focusing eyepieces, FN2 . |
| WF15x-F widefield, high eyepoint, focusing eyepieces, FN16. | |
| WF20x-F widefield, high eyepoint, focusing eyepieces, FN12. | |
| Objective Lenses | Standard built-in objective: 0.65x – 5.2x zoom. |
| Auxiliary objective 0.5x, WD = 177mm. | |
| Auxiliary objective 0.7x, WD = 120mm. | |
| Auxiliary objective 1.5x, WD = 47mm. | |
| Auxiliary objective 2.0x, WD = 26mm. | |
| Working Distance | 118mm. |

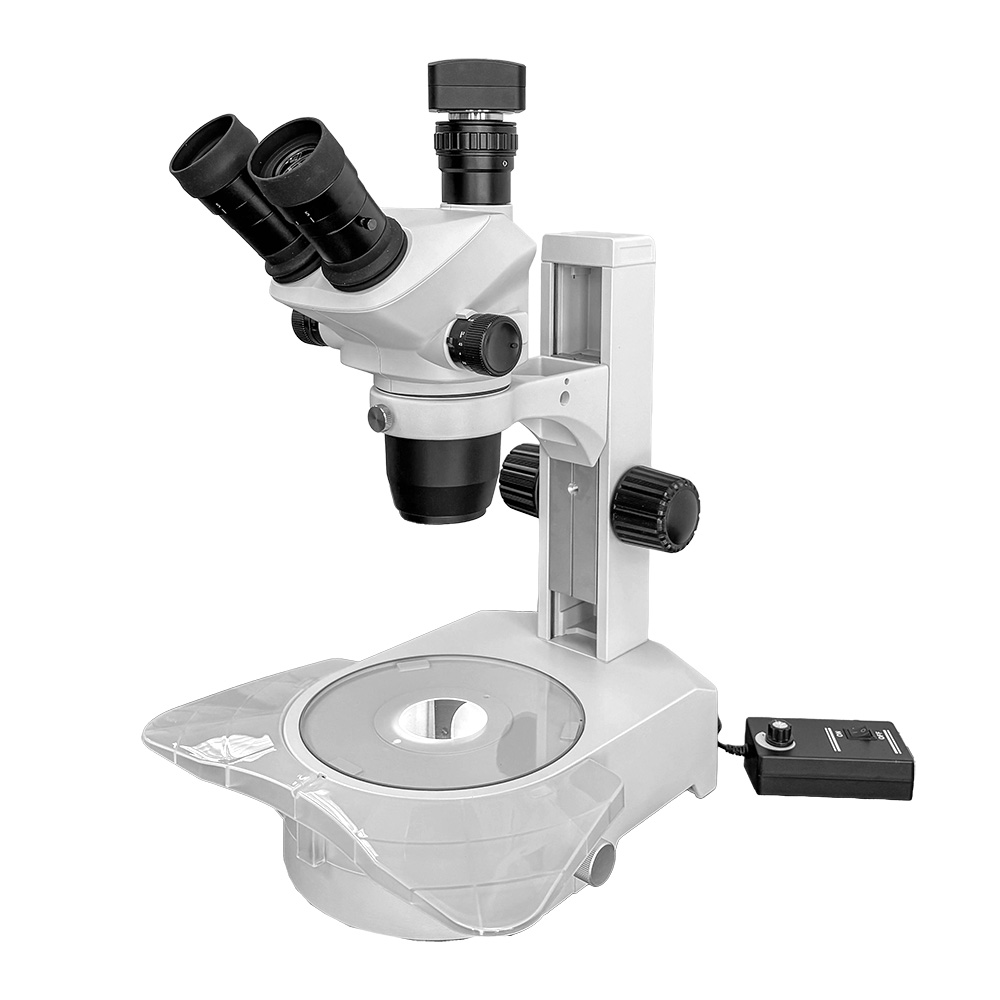

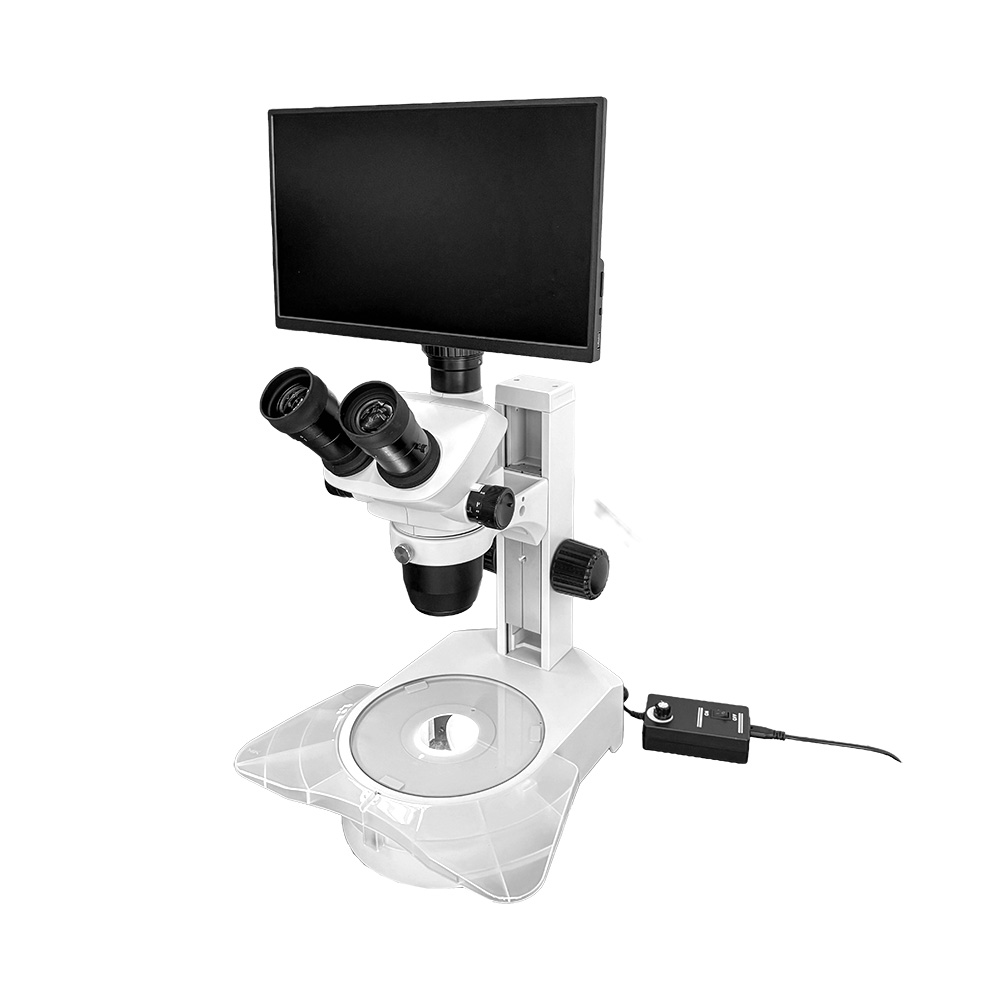

| Stand | Brightfield / Darkfield stand has a mirror base for brightfield/darkfield observation modes. Mirror position can be adjusted. Stand includes a removable plastic hand rest that fits on the front. Stage has 7″ diameter glass stage plate. The back of the stand holds microscope allen keys. |
| C-Mount Adapters | Focusing C-Mount Adapters 0.35x, 0.5x, 1x. |

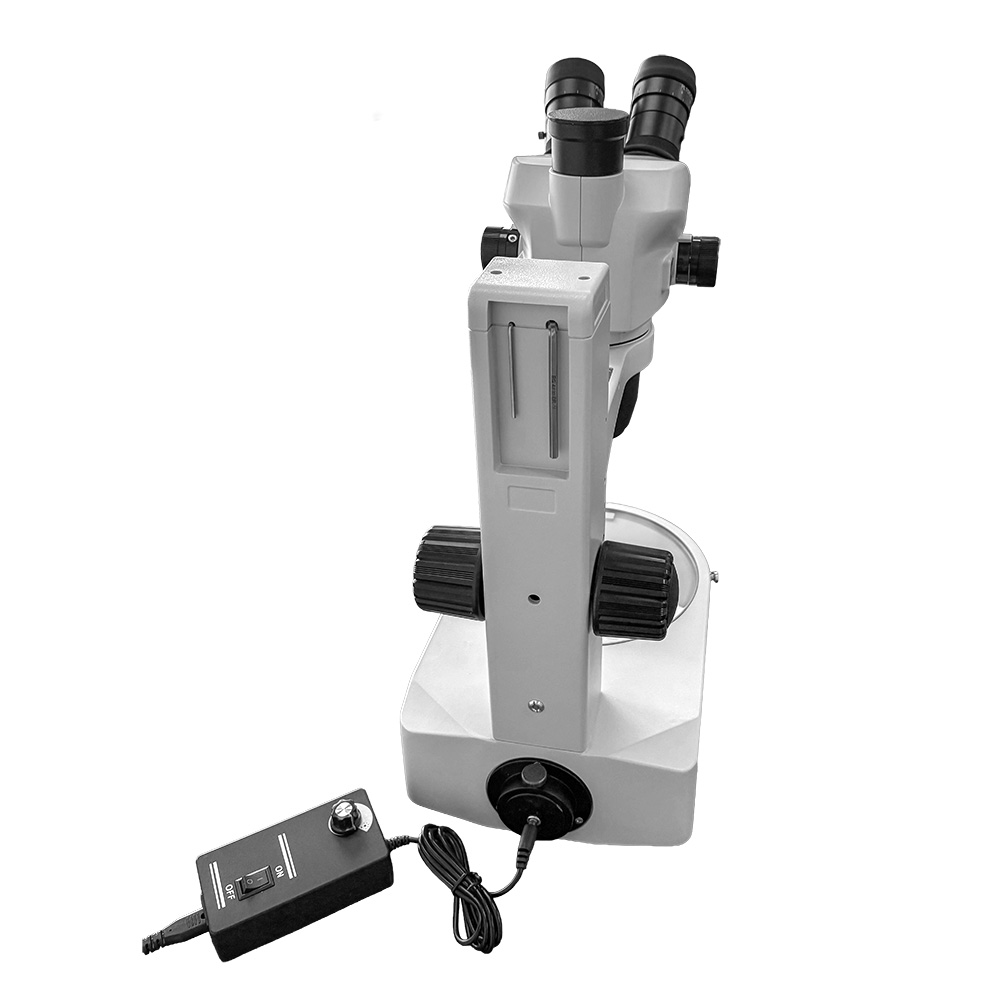

| Illumination | Built-in LED illumination with eternal intensity rheostat control and on/off switch control box. |
| Dimensions | 12.75" W x 13" D x 15.4" H (with hand rest attached), 7.9″ W x 13″ D x 15.4″ H (without hand rest) |
| FZ8 Stereo Zoom Microscope Magnification | |||||||
| Auxiliary Lens | Working Distance | 10x Eyepieces |
15x Eyepieces |
20x Eyepieces |
|||
| Magnification | Field Size |
Magnification | Field Size |
Magnification | Field Size | ||
| 1x (None) |
118mm |
6.5x – 52x |
36.2mm – 4.7mm |
9.75x – 78x |
24.6mm – 3.1mm |
13x – 104x | 15.4mm – 1.9mm |
| 0.5x |
177mm |
3.3x – 26x |
73.8mm – 9.2mm |
4.9x – 39x | 49.2mm – 6.2mm |
6.5x – 52x | 30.8mm – 3.8mm |
| 0.7x |
120mm |
4.6x – 36.4x |
52.7mm – 6.6mm |
6.8x – 54.6x | 35.2mm – 4.4mm |
9.1x – 72.8x | 22mm – 2.7mm |
| 1.5x | 47mm | 9.75x – 78x |
24.6mm – 3.1mm |
14.6x – 117x | 16.4mm – 2.1mm | 19.5x – 156x |
10.3mm – 1.3mm |
| 2.0x | 26mm | 13x – 104x |
18.5mm – 2.3mm |
19.5x – 156x | 12.3mm – 1.5mm | 26x – 208x | 7.7mm – 1mm |
