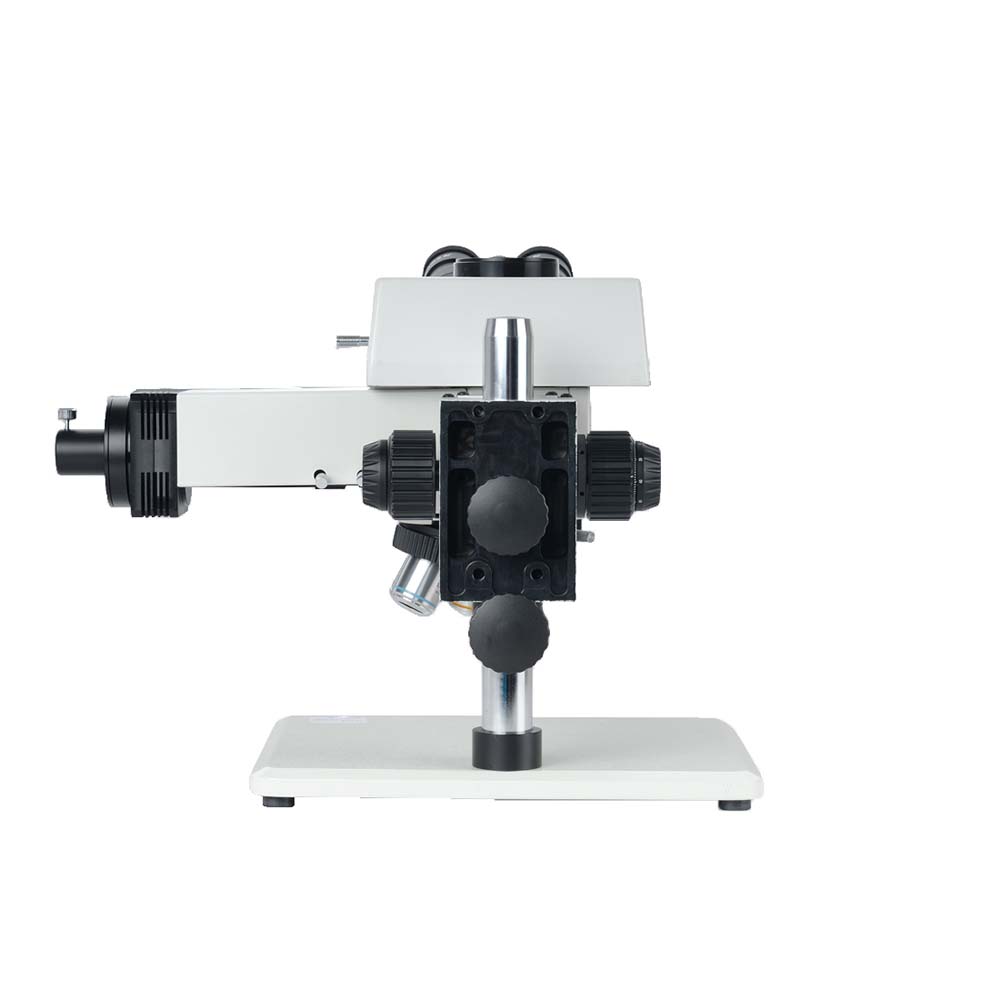

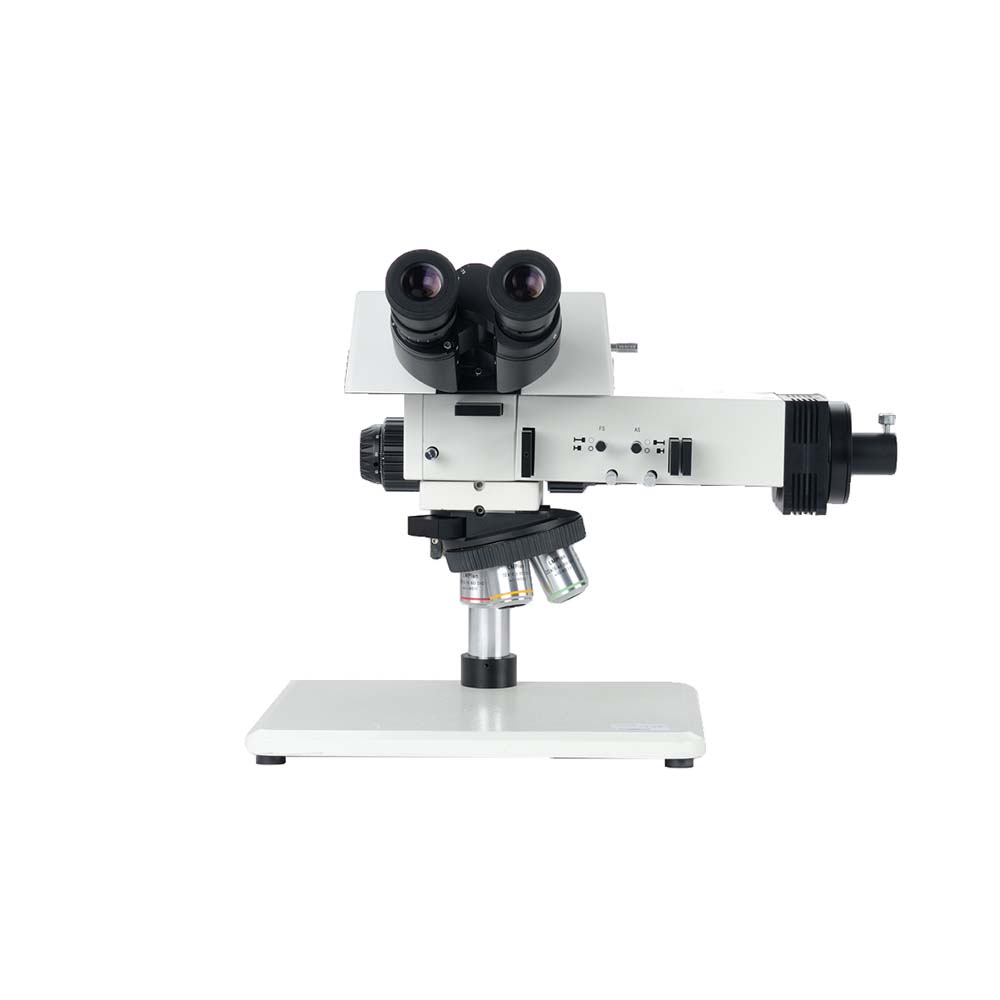

M40X Metallurgical Semiconductor Inspection Microscope
The Fein Optic M40X metallurgical semiconductor inspection microscope with reflected illumination is available with brightfield or brightfield/darkfield. The microscope has a larger working surface and high intensity LED illumination. Observation techniques include polarization, brightfield, darkfield, and DIC. A variety of objective lenses are available.
| Optical System | Infinity Color Corrected Achromatic Optical System |
| Observation | M40X: Brightfield, Oblique Illumination, Polarization, DIC |
| M40X-BD: Brightfield, Darkfield, Polarization, DIC | |
| Viewing Head | 25° Inclined trinocular viewing head, erect image. Splitting ration: 100:0 or 0:100. Diopter adjustment +/-5. Interpupillary distance adjustable from 54mm – 75mm. |
| Eyepieces | High eyepoint WF PL10x / 22mm. |
| Objectives | Infinity Corrected LWD Brightfield Plan Achromat 5x, 10x, 20x, 50x, 100x. |
| Infinity Corrected LWD Brightfield Darkfield Plan Achromat 5x, 10x, 20x, 50x, 100x. | |
| Infinity Corrected High Resolution Brightfield Darkfield Semi Apo Objectives 5x, 10x, 20x, 50x, 100x. | |
| Infinity Corrected Brightfield Darkfield Plan Achromat 5x, 10x, 20x, 50x, 100x. | |

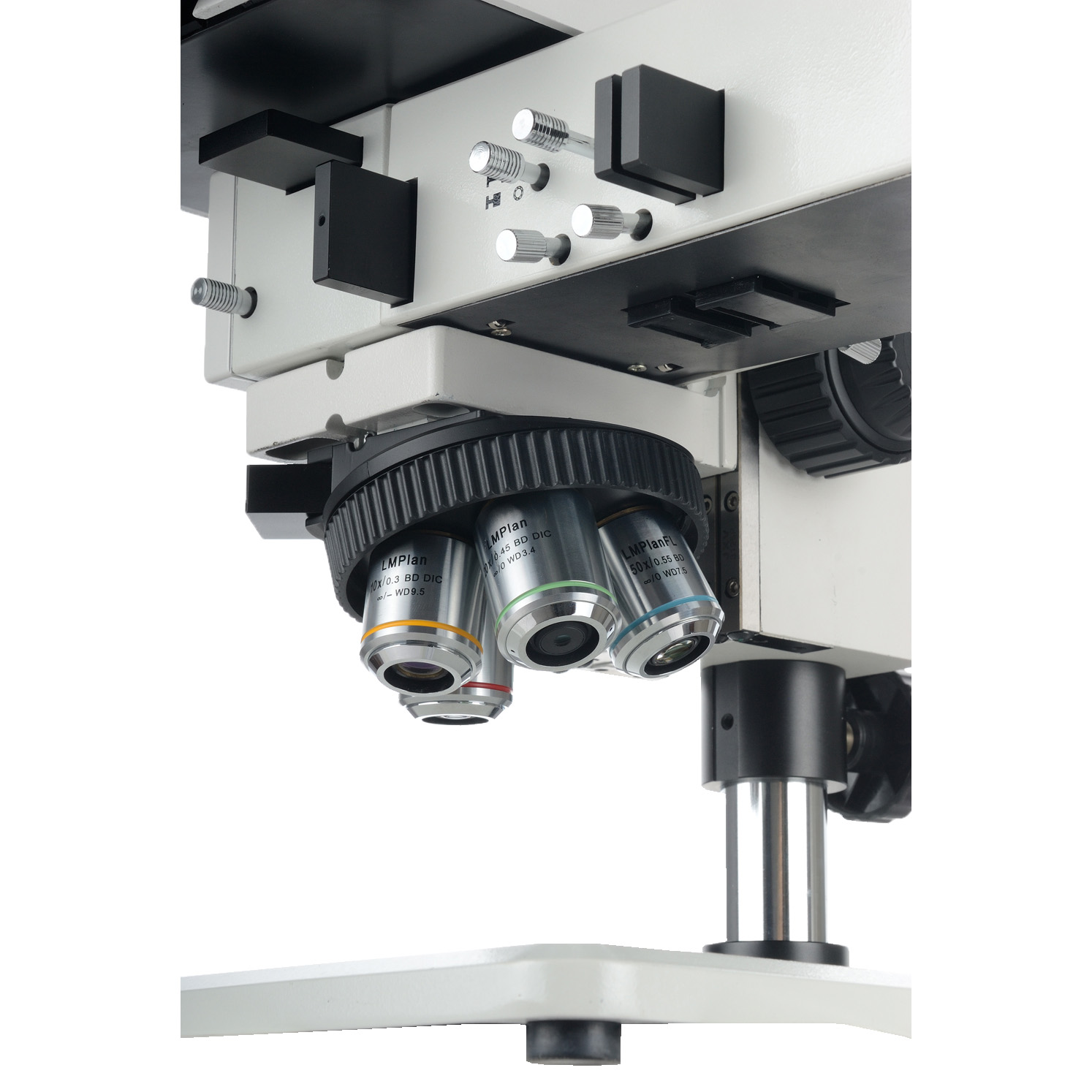

| Nosepiece | M40X: Tilted quintuple nosepiece for brightfield with DIC slot. |
| M40X-BD: Tilted quintuple nosepiece for brightfield, darkfield, with DIC slot. | |
| Focus Adjustment | Coaxial coarse and fine focus mechanism, coarse range: 32mm, fine precision: 0.002mm. With tension adjustment. |
| Power | Auto voltage sending power supply 96~264V wide voltage system. |
| Stage | Large flat base 320mm x 260mm x 16mm. Post height 280mm, 32mm diameter post. |
| Illumination | High intensity LED fiber optic illuminator with on board thermal sensors, 80W, 25,000 hours lifetime. Auto voltage sensing power supply 96~264VAC, 50-60Hz. |
| Polarization/DIC | Polarizer, fixed analyzer, 360 degree rotatable analyzer, DIC slider. |
| C-Mount Adapter | 0.5x, 0.65x, 1x C-Mount Adapters. |
