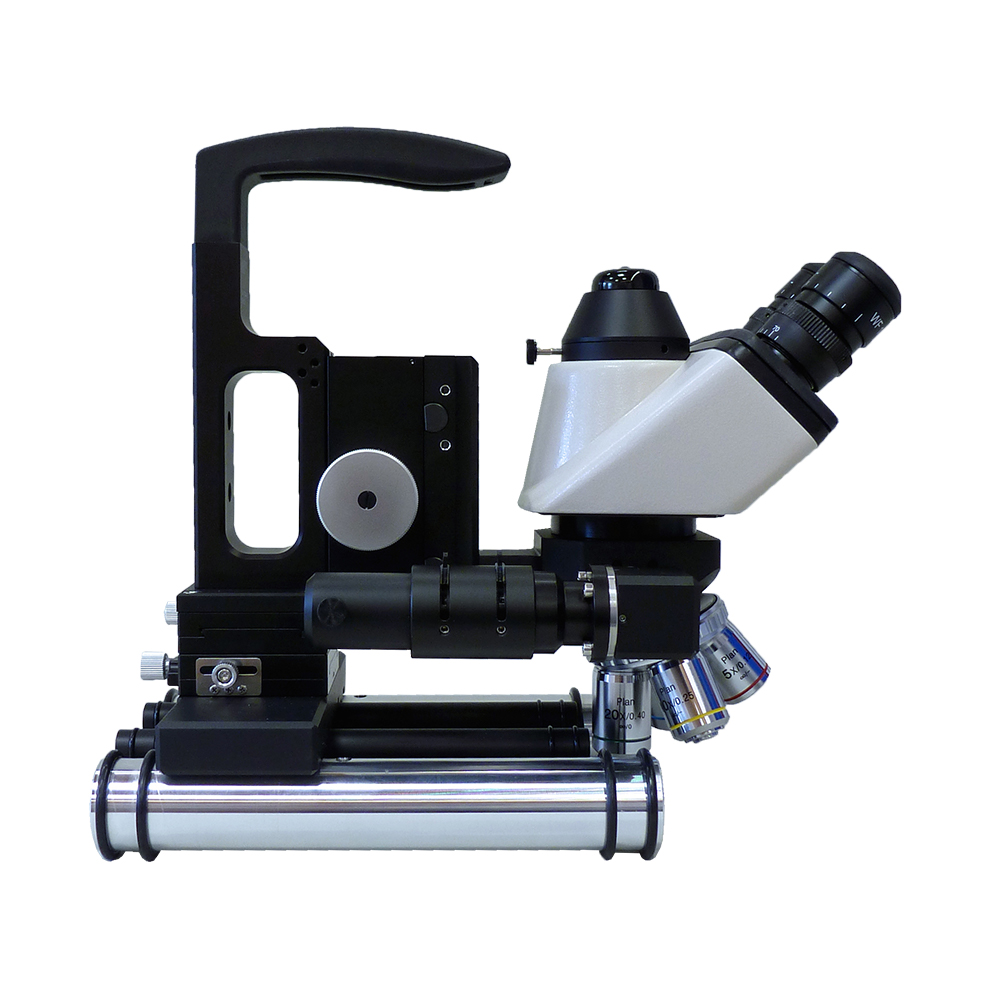

MP20 Portable Metallurgical Microscope
The Fein Optic MP20 portable metallurgical microscope is perfect for on-the-job microscopy needs in hard-to-reach areas. The battery powered LED illumination makes it easy to use on-location and provides cable-free operation. Applications include corrosion analysis, print roller inspection, aircraft wing inspection, metal sheet inspection, rail inspection, portable metallurgy, fracture inspection, and forensic field examination.
| Optical System | Infinity Color Corrected Achromatic Optical System |
| Viewing Head | Trinocular viewing head inclined 30°, rotates 360°, interpupillary distance adjustable from 54mm – 75mm. Integrated 0.5x c-mount. |
| Optical video tube with integrated 0.5x c-mount. | |
| Eyepieces | WF 10x/18 eyepiece, one contains reticle with scale and cross-line. |
| Objectives | LWD Plan Achromat Metallurgical Infinity Corrected 5x, 10x, 20x, 50x. |
| Semi APO Brightfield Metallurgical Infinity Corrected 5x, 10x, 20x, 50x, 100x. | |
| Nosepiece | 4-Position Nosepiece. |
| Focus Adjustment | Z-Axis movement with coarse / fine focusing drive. Coarse focus travel 80mm. Fine gear travel 0.24mm. Resolution of fine drive 0.003mm. |

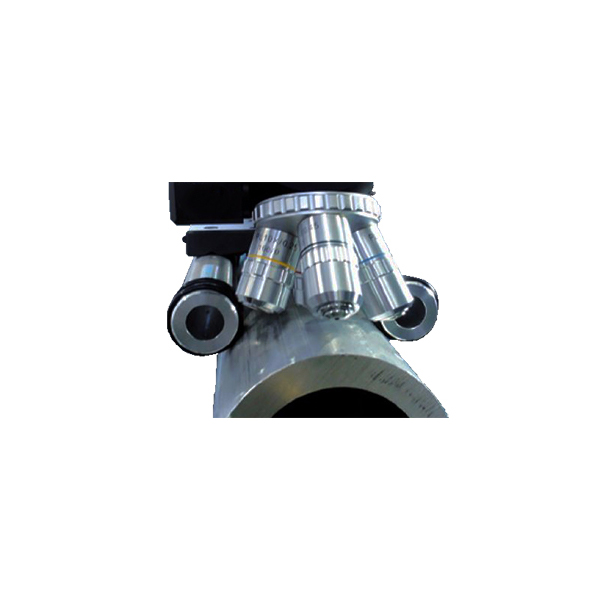

| Roller Diameter Compatibility | Compatible with roller diameter down to 60mm or flat samples. |
| Stage | Sensitive position of the microscope with integrated X-Y stage, travel +/-9mm, scale division 0.1mm, resolution 0.002mm. |
| Z-Axis movement with coarse / fine focusing drive. Coarse focus travel 80mm. Fine gear travel 0.24mm. Resolution of fine drive 0.003mm. | |
| Reflected Illumination | LED Coaxial Illumination, Battery with stepless brightness adjustment. USB charger included. |

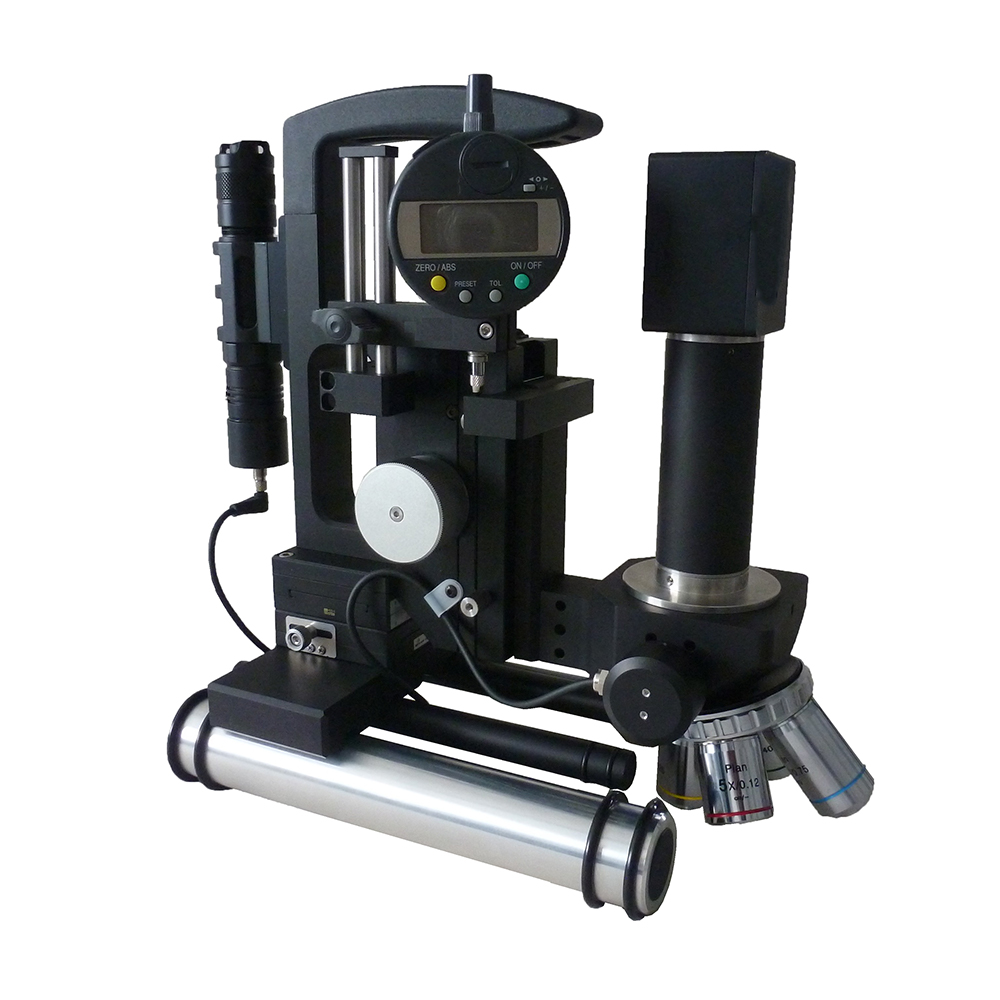

| Height Gauge | Optional digital height gauge clamp to integrate gauge for depth and height measurements. |
| C-Mount | Integrated 0.5x c-mount. |
| Size / Weight | 12.6″ x 6.3″ x 9″. 8.6 lbs. |
