HDCAM7 High Definition Microscope 4K Camera with On-Screen Measuring
The Fein Optic HDCAM7 microscope camera is a high definition 4K camera with a fast frame rate that allows you to make on-screen measurements. This camera is ideal for presentations, quality control, inspection, cases where a fast live frame rate is required, viewing images on a monitor or large screen and soldering. The camera includes software for USB2 connection. Optional 13″ HDMI LCD monitor with True 1080P is available. The monitor connects directly to the camera and is great for situations where the monitor needs to be off the working surface. 8mp image capture to SD card or USB flash drive.
| Image Sensor | 1/1.8″ Sony Exmor STARVIS IMX678 (C) |
| Pixel Size | 2.0 x 2.0µm |
| Resolution | 3840 x 2160 |
| Frame Rates | HDMI: 30fps @ 3840 x 2160 4K Resolution |
| Binning | 1×1 |
| Exposure | 0.01ms~1000s |

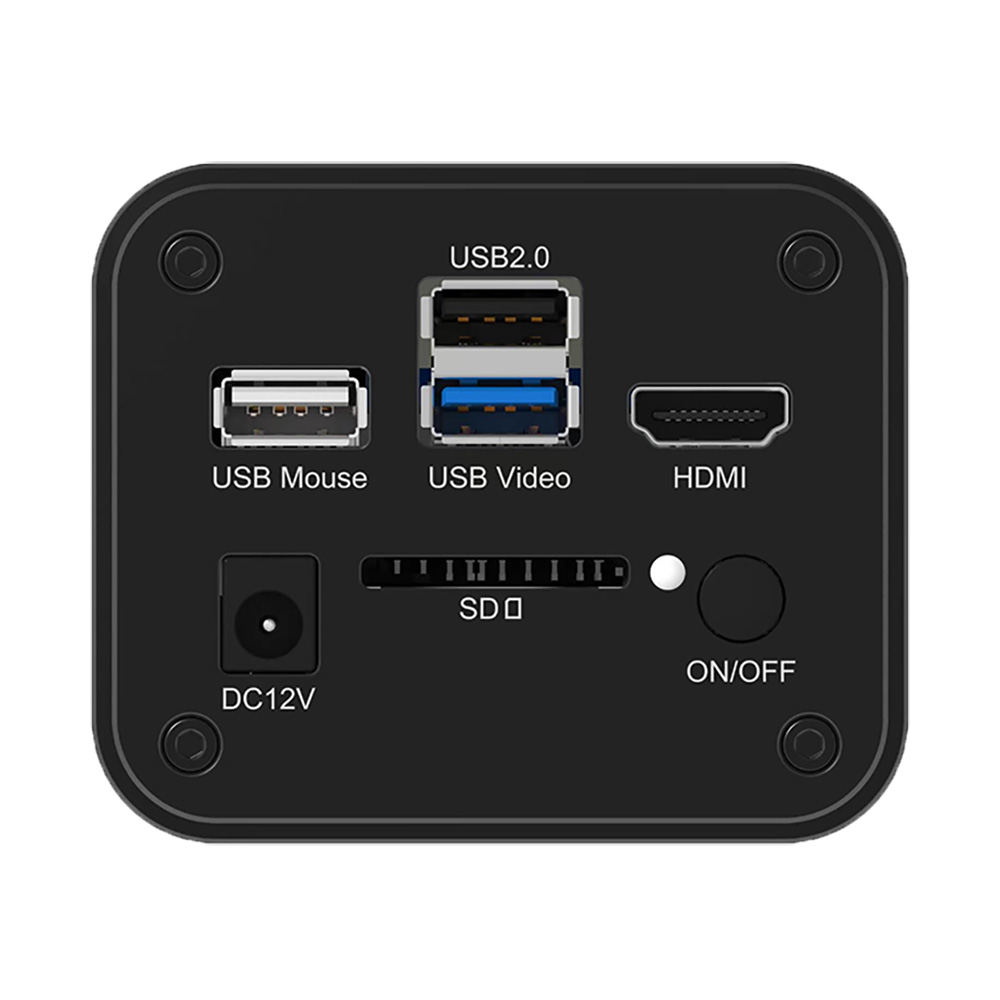

| Output | HDMI, USB2 |
| Sensitivity | 505 mv |
| Power | DC12V/2A, power on/off switch. |
| HDMI Controls | USB Mouse for on-screen control. |
| 8 Megapixel Image Capture to SD Card or USB Flash Drive, Video recording 50-60fps to SD Card for USB Flash Drive. | |
| Camera control panel: Exposure, Gain, White Balance, Color, Sharpness. | |
| Toolbar: Measurement, Zoom, Mirror, Comparison, Freeze, Crossline, On-Monitor Measuring. | |
| USB Controls. | White Balance, Auto White Balance, ROI White Balance. |
| Capture still images or motion video with software. | |
| USB works with full use of software on PC or Laptop, will not work with MAC. | |
| Software Features | Image capture, still or motion video. |
| Adjustment of white balance, color, frame rate, exposure, gain, flip, sampling, bit depth, ROI, histogram, darkfield correction. | |
| Annotation | |
| Measurement and Calibration: angles, lines, diameter, polygon, etc. (PC only) | |
| Operating System for Software (USB) | Windows 7, 8, 10, 11 (32 & 64 bit). |
| PC Requirements (USB) | CPU equal or greater than Intel Core2 2.8GHz |
| Memory: 4GB or more | |
| USB3.0 Port, Display of 19″ or larger, 4K Resolution. | |
| Operating Temp | -10~50°C |
| Storage Temp | -20~60°C |
| Operating Humidity | 30-80%RH |
| Storage Humidity | 10-60%RH |
| Size | 3.46″ W x 2.46″ D x 3.07″ H, 1lb. |
| Connection | C-Mount Threads |
